Explorer 24 Overview

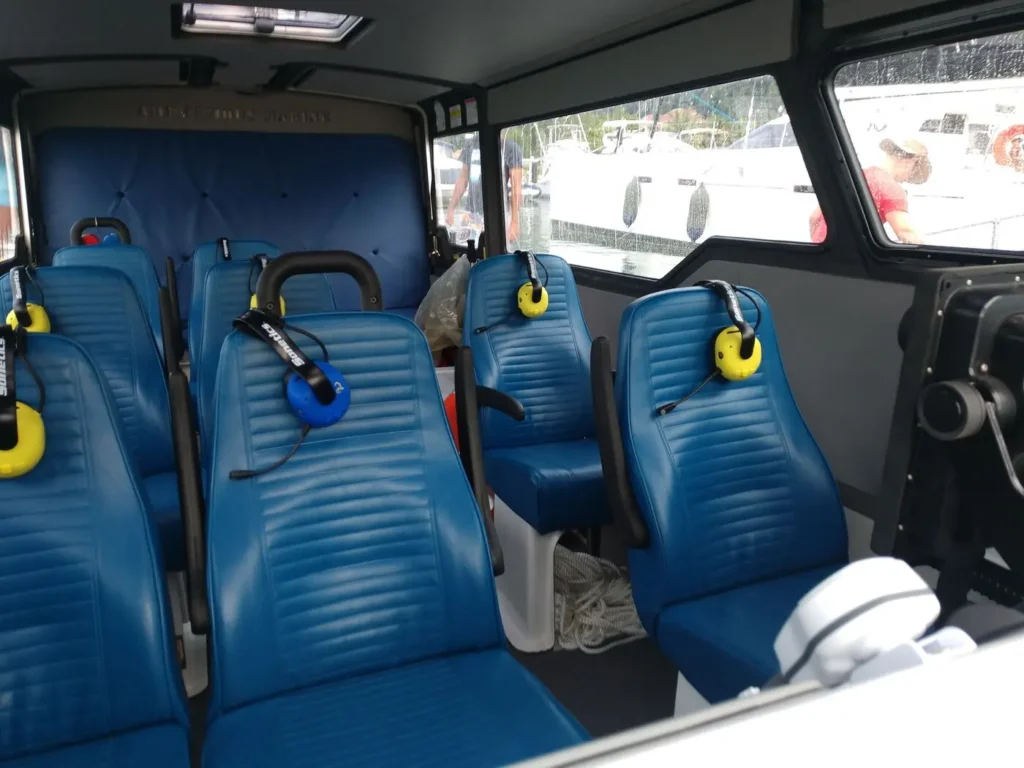

The Explorer 24 commercial hovercraft is the most efficient, cost effective, saltwater capable hovercraft on the market today. It has a fully enclosed cabin with seating arrangements for 12 people, and is being used for revenue generating operations such as tourist attractions. Another use is as a personal cruising vessel with significant advantages over tradition power boats.

Amphibious Marine Explorer 24 Hovercraft at speed, near saltwater river delta, stern quarter view.Possibilities here are virtually unlimited. Operates on a pressurized cushion of air the vehicle leaves virtually no wake at cruise speed, 32 mph, as it flies 16.5 inches above the surface. This vessel is powered with a Steyr commercial marine diesel engine producing 144 hp, but cruises at 32 mph on 45% throttle, or just 3.4 GPH. State of the art construction features resin infused composite laminates of structural marine foam, glass fiber, carbon reinforcement and epoxy vinyl ester resin. Explorer 24 video.

Unlike older aluminum designs you might see, this craft is capable of more payload and speed for a given amount of horsepower. This means reduced fuel consumption, less noise, lower initial cost and reduced operating costs. In face some craft use two even three times as much horsepower while carrying less payload. The noise levels are similar to most inboard jet boats but lower than that of outboard jet motors. The 2200 pound payload is based on a deep water plane out with an added margin for wind or other adverse conditions. For example, a maximum plane out test will show about 2600 pounds payload. Payload includes people, fuel and gear. Empty weight of the craft is approximately 2200 pounds and the standard trailer weighs about 800lbs.

Operating range with the stock 38 gallon tank at 32 mph is approximately 325 miles while allowing for a reserve.

Hovercraft is equipped standard with tinned marine grade wire, adhesive lined heat shrink connectors, waterproof electrical plugs, stainless fasteners, stainless turbo exhaust piping, stainless shafting, six greaseable bearings, stainless steel guard and gelcoat finish. Saltwater option upgrades the propeller and lift fan frames to stainless tubing, the muffler to stainless, engine is painted, aluminum components are hard anodized or powder coated and certain drive components are made in stainless.

The unique Amphibious Marine skirt system uses a minimum amount of fabric while maximizing hover height and durability. Maintenance on the 36 ounce urethane coated fabric is commonly done on a seasonal basis, unlike some craft that require work after each run. Thin layers of urethane film or urethane coated fabric can be bonded to the six discrete wear areas on skirt, using a single part contact adhesive or hot air welder. Seasonal maintenance is completed in a matter of a few hours with very little material cost.

When the engine is started the automatic clutch gives a smooth start for the fan and propeller immediately inflating the skirt to its full operating width. The lift system is fully operational at a very low throttle setting allowing for exceptional control without the need to operate the fan and propeller separately. The multi-compartment skirt system is unique in its capability to handle waves and wakes that would leave most craft with their nose in the water struggling to get moving again. Skirt width as measured at the ground contact point, 11 feet wide, and is 13.8 feet from outside to outside. When the engine is shut down the skirt system automatically folds down to 8 1/2 feet for trailering.

This design has proven itself over the last 18 years, on trips as long as 1400 miles from Seattle to Juneau Alaska up the inside passage.

Detailed specifications are available in the form of a downloadable PDF for your viewing or printing and there is a brochure as well. Please view the videos and photographs and feel free to e-mail or call with questions.

Base price: Call for factory direct pricing.

Options:

  1. Steyr engine control display, 7″ LCD
  2. Saltwater series: includes all necessary upgrades for saltwater use
  3. Camouflage paint scheme
  4. Galvanized boat trailer
  5. Dry launch, rapid deployment trailer
  6. Hot air skirt welder
  7. Stainless boarding ladder
  8. Carbon fiber radar and LED light mast
  9. Hatch
  10. Roof grab rails

Commercial

  • Tourist operations, resort hotels, eco tours, remote resort access
  • Hunting & Fishing guide services
  • Oyster and clam harvesting
  • Surveys, pipe lines, drilling
  • Fishing, easy access to shore line, skims over net

Search & Rescue

  • Ice rescue, fast, safe, & efficient rescue of people and animals.
  • Mud rescue
  • Flood water rescue. Hovercraft are immune to floating or submerged obstacles, debris, and swift currents.

Recreation

  • Fishing, fly fishing, ice fishing, and trolling.
  • Tender for larger vessels.
  • Duck hunting.
  • Exploration
  • Camping

Government

  • Mosquito abatement.
  • Tidal area research and monitoring.
  • Noxious weed abatement.
  • Oil spill clean up.
  • Surveys, wildlife, pollution. wetland

Downloadable Brochures

Picture of Explorer 24 hovercraft brochure

Specifications

DimensionsDimensions: 24’ X 11’ (6.7m X 3.4m) cushion, 227ft2 (18.9m2) Length over all: 26’ (7.9m).  Cockpit space 153” X 76” (388cm x 193cm). Height: 8’ 6” (2.59m) off cushion. Cushion depth or hard clearance: 16.5” (41.9cm). Note: craft automatically folds down to  8.5’ (2.6m) for trailering.
Payload10-12 adults or 2200 lbs (1000 kg) payload, includes people, fuel and gear.
Empty weight2200 lbs (953 kg).
Speed47 mph (75 kph) maximum on water in flat calm conditions, 32mph (51.5 kph) cruise
Fuel use 3.4 gallons (11.3 liters)/hour at cruise.
Maximum Wave Height4 feet (1.2m), sea state 4 to 5
Hull materialResin infused composite laminate of structural marine foam, glass fiber, carbon reinforcement and epoxy vinyl ester resin. Three sealed compartments, front and rear provide 3000 lbs (1363kg) of flotation. No wood is used in the construction of the craft.
EnginesSteyr marine, 144 hp (107 kw), 4 cylinder, 2.1L, diesel powered, turbo charged, inter-cooled.
Drive systemThe lift fan and propeller are driven by Urethane/carbon fiber belts with hard anodized aluminum pulleys via a flexible coupling from the engine.
Thrust propeller84” (213cm), 3 bladed quick adjustable pitch composite propeller.
Lift fan34” 12 bladed adjustable pitch nylon fan.
Skirt SystemMulti-compartment skirt, with fore and aft partitions. Large diameter bag type skirt on sides and rear.
Skirt material35/23 oz/yd Urethane approx. 1,500 to 2,000 hour life. A feature not found on any other hovercraft!
BrakesThe brakes, controlled by the operator, reduce the pressure of the forward compartment allowing for smooth slowing, stopping and turning.
Noise Levels82 dBA measured at 50 feet (15.2m) over grass, full power.  78 dBA measured at 50 feet (15.2m) over grass, cruise setting. The large diameter propeller reduces noise far below common hovercraft by making efficient use of power.
